Technical Specifications: Hydraulic Door Closer
General Product Information
-

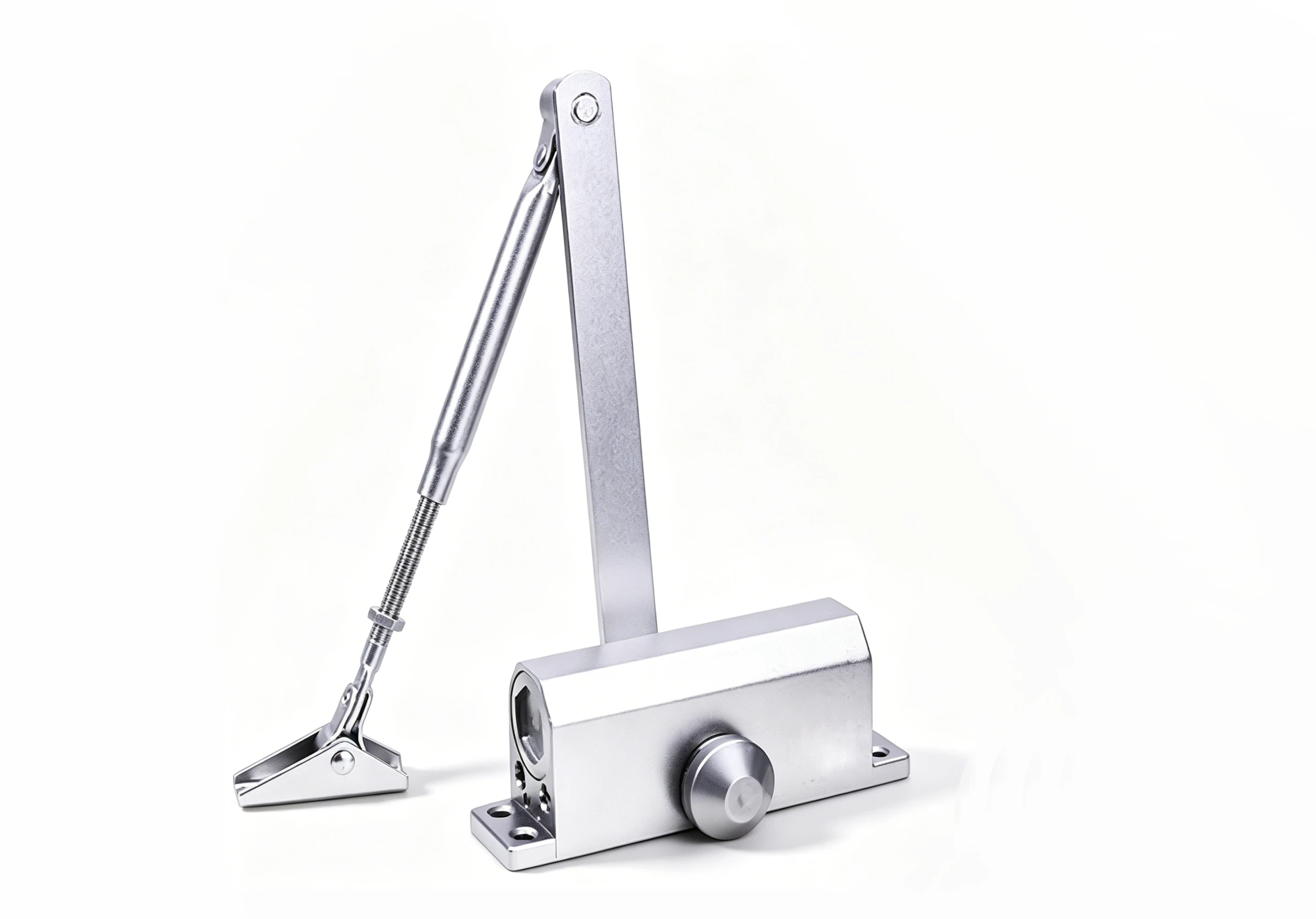

Product Name: Hydraulic Door Closer
-
Origin: Guangdong, China
-
Material: High-grade Die-cast Aluminum
-
Finish: Satin Silver (Sand Silver)
-
Application: Suitable for various metal, timber, and uPVC (Plastic-Steel) doors.

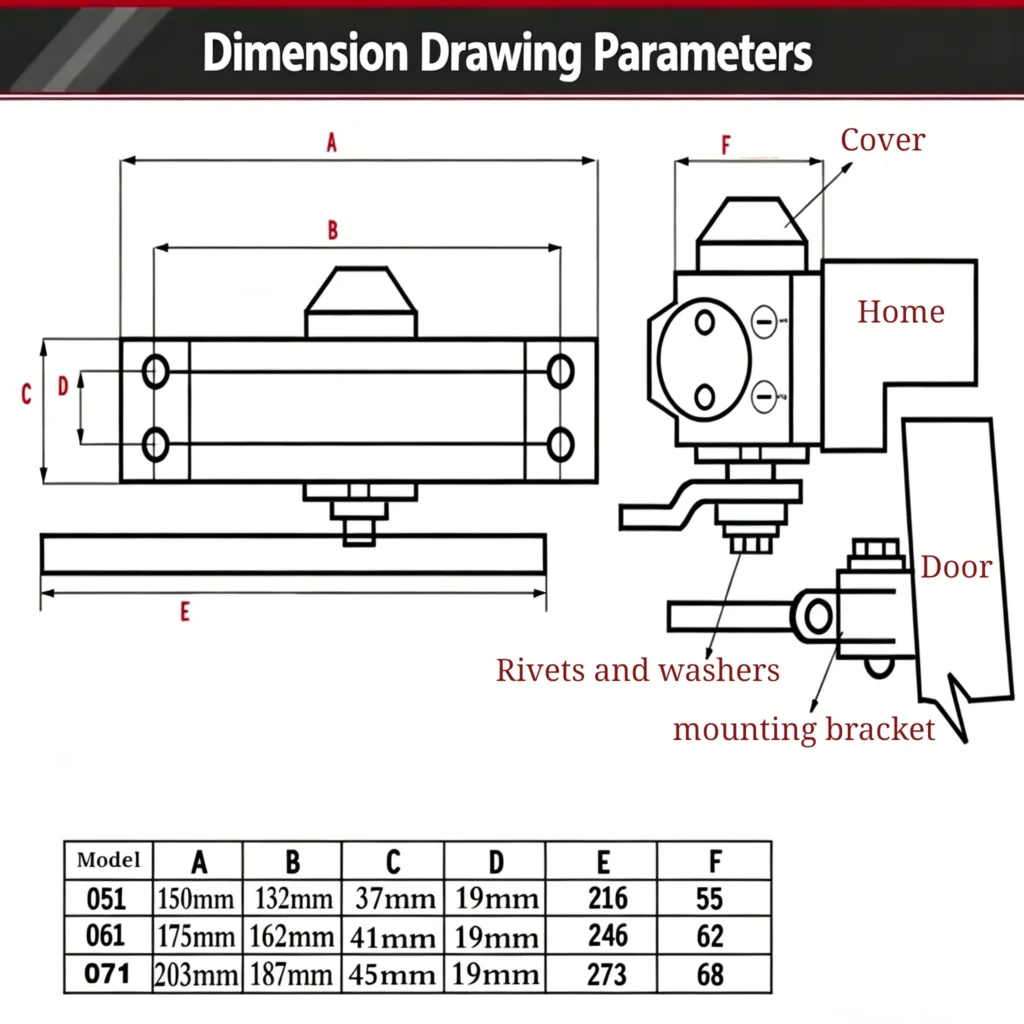

Model Comparison & Sizing Guide
| Model | Recommended Door Weight | Recommended Door Width | Net Weight |
| Small (051) | 25 – 45 kg | 500 – 800 mm | 0.91 kg |
| Medium (061) | 40 – 55 kg | 550 – 1100 mm | 1.10 kg |
| Large (071) | 45 – 65 kg | 800 – 1200 mm | 1.51 kg |
